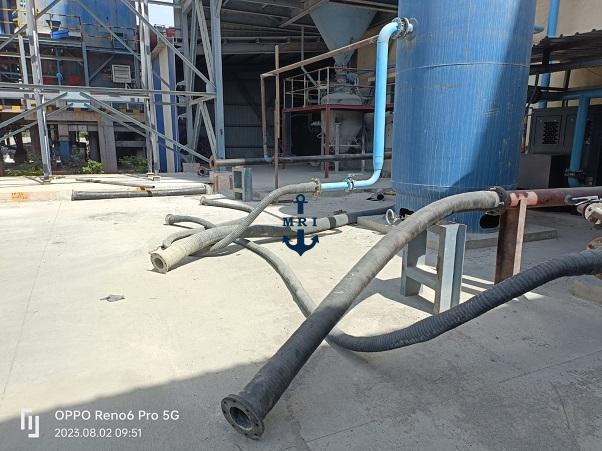

Cement Grouting Hose (IS-5137/90)
| Application: |
Recommended for conveying moist sand and cement to cement placement mixing gun nozzles. Also, recommended for conveying wet concrete and grouting mixtures, under pressure.
|
 |
| Construction: |
TUBE: Uniform thickness seamless synthetic rubber inner tube blended with abrasion, age and weather resistant rubber.
|
|
| Reinforcement |
Layers of high synthetic textile impregnated with elastomeric material.
|
|
| Cover: |
Static dissipating, synthetic abrasive resistant rubber with gray strip.
|
|
| Electric Conductivity: |
Anti-static copper wire.
|
|
| Temperature: |
-40°C to 60°C continuous service.
|
|
| Hydrostatic Pressure: |
The hoses are suitable for Working pressure of 10 kg/cm2g.
|
|
I. D. (mm)
|
25
|
32
|
38
|
50
|
63
|
75
|
102
|
|
Tol on l.D (mm)
|
±1.25
|
±1.25
|
±1.50
|
±1.50
|
±1.50
|
±2.0
|
±2.0
|
