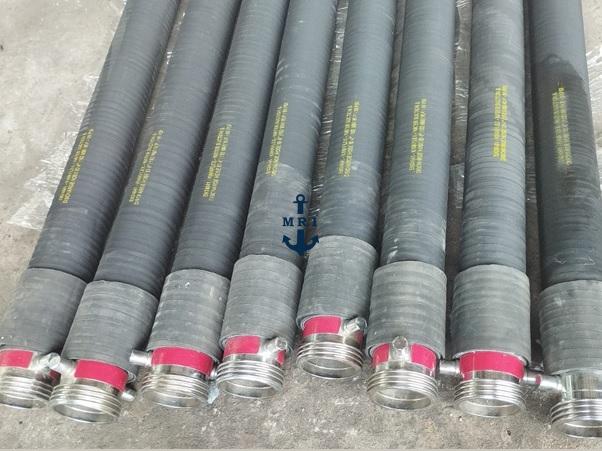

Fire Service Hose (IS-2410/63)
| Application: | For Fire service in Fire stations and fire brigades. |
 |
| Construction: | TUBE: Uniform thickness seamless tube of water resistant rubber compound suitable for the intended use. | |
| Reinforcement: | Layers of high synthetic textile impregnated with elastomeric material. |
|
| Cover: | It is typically made from rubber which gives outstanding resistance to heat and abrasion with green strip. | |
| Temperature: | Up to 80 degree Celcius. | |
| Hydrostatic Pressure: |
The hoses are suitable for Maximum working pressure of 8 kg/cm2g.Vacuum: 635mm of Hg Length: Max. 20 meters |
|
| End Connections: | Couplings as per IS 9021B5-336 duly wire bounded. |
| I. D.(mm) | 75 | 100 | 125 | 140 |
| Tol on I.D (mm) | ±1.0 | ±2.0 | ±2.0 | ±2.0 |
| No.of Plies | 4 | 4 | 4 | 5 |
| Length of soft ends | 80±5 | 105±5 | 130±5 | 145±5 |
