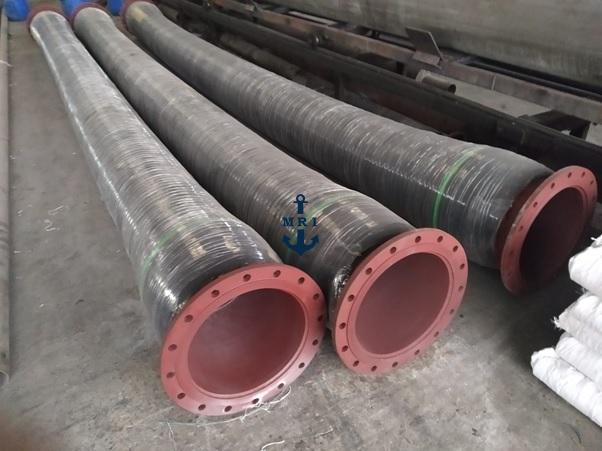

Water Suction and Discharge Hose (Heavy Duty) IS-3549/83
Types:
| Type 1: | Hose having rough bore. (Internal wire helix.) |
 |
| Type 2: | Hose having smooth bore. Both the types are suitable for working pressure of 7 kg/cm2g, 10 kg/cm2g, 15 kg/cm2g, 20 kg/cm2g and 25 kg/cm2g. Vacuum: 625mm of Hg. Length: Max. 20 meters…. |
|
|
Application: |
Water suction & discharge for construction, Mining & De watering purposes. Size starting from 25 mm i/d to 900 mm I/d in different lengths, working pressure, end fittings as per customer’s requirements | |
| Construction: | TUBE: Uniform thickness seamless tube of water resistant rubber. | |
| Reinforcement: | Synthetic, high tensile textile impregnated with elastomeric material with steel wire helix. | |
| Cover: | Black colors, weather & ozone resistant cover with green strip. | |
| Temperature: | -42°C to 82°C continuous service. |
| ID.(mm) | 25 | 32 | 38 | 45 | 50 | 56 | 63 | 75 | 100 | 125 | 152 | 204 | 254 |
| Tol on l.D (mm | ±1.25 | ±1.25 | ±1.50 | ±1.50 | ±1.50 | ±1.50 | ±1.50 | ±2.0 | ±2.0 | ±2.0 | ±2.0 | ±2.5 | ±3.0 |
| Length of Soft ends | 80±5 | 80±5 | 80±5 | 80±5 | 80±5 | 80±5 | 80±5 | 80±5 | 105±5 | 145±5 | 145±5 | 145±5 | 145±5 |
